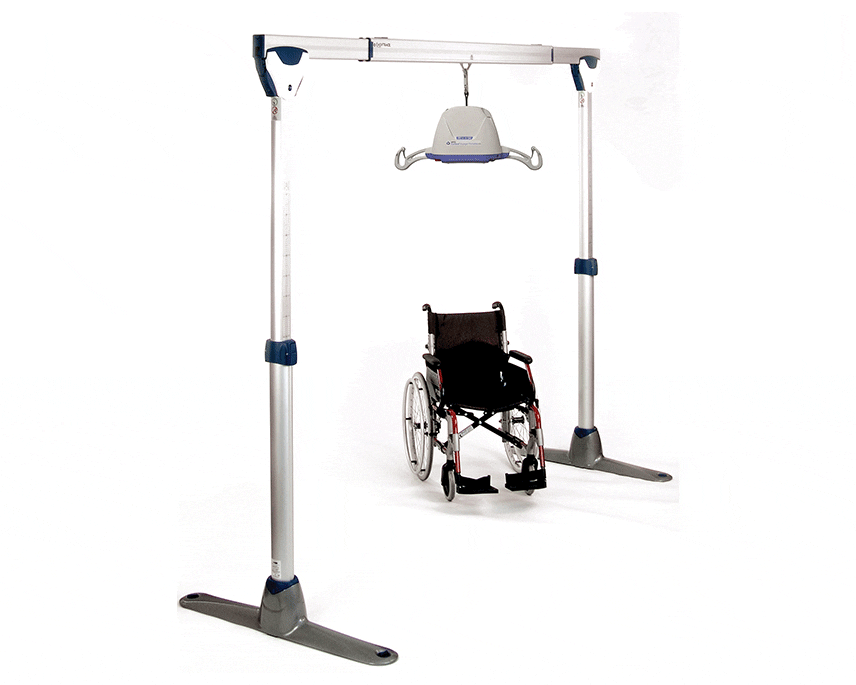

Oxford Easytrack FS Gantry
Portable SolutionsLightweight, Free-Standing Portable Gantry

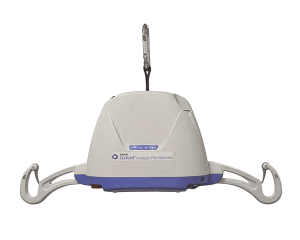

The Easytrack FS Gantry is a free standing, overhead portable tracking system based on many of the same principles as the Easytrack range. It is designed to be paired with the Oxford Voyager Portable, however, it does not rely on support from the ceiling, thereby removing any potential structural issues that may be encountered.
Main Features of the Easytrack FS:
- Safe working load of 200kg / 31st
- Quick and easy to assemble by a single person
- Telescopic, locking posts for different height requirements
- Simple, no tools design
- Lightweight components
- Easy to transport and store
| Specification | Easytrack FS Gantry |
|---|---|
| Safe Working Load | 200kg / 441Ibs / 31st |
| Floor to Top of Rail | 1,830 – 2,406mm (72 – 95”) |
| Floor to Bottom of Rail | 1,680 – 2,256mm (66 – 89”) |
| Exterior Width | 2,210 – 3,230mm (87 – 127”) |
| Interior Width | 1,910 – 2,930mm (75 – 115”) |
| Footplate Length | 1,075mm (42”) |
| Footplate Width | 150mm (6”) |
| Rail Weight | 14kg (31Ibs) |
| Post Weight (each) | 9.5kg (21Ibs) |
| Footplate | 5.5kg (12Ibs) |
