Oxford Switch

Active Stand-Aids

Versatile Solution to Assisted Standing and Transfers

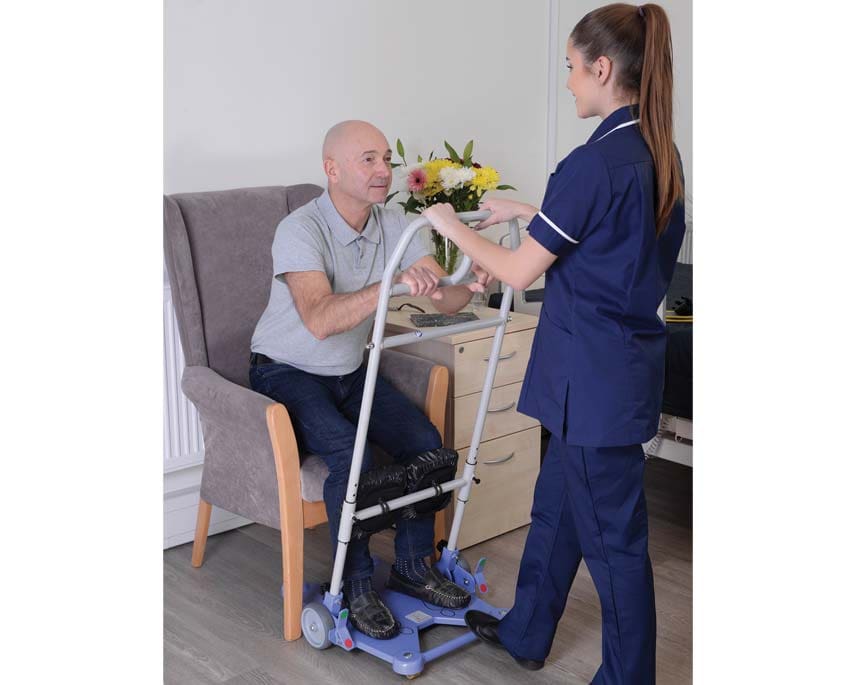

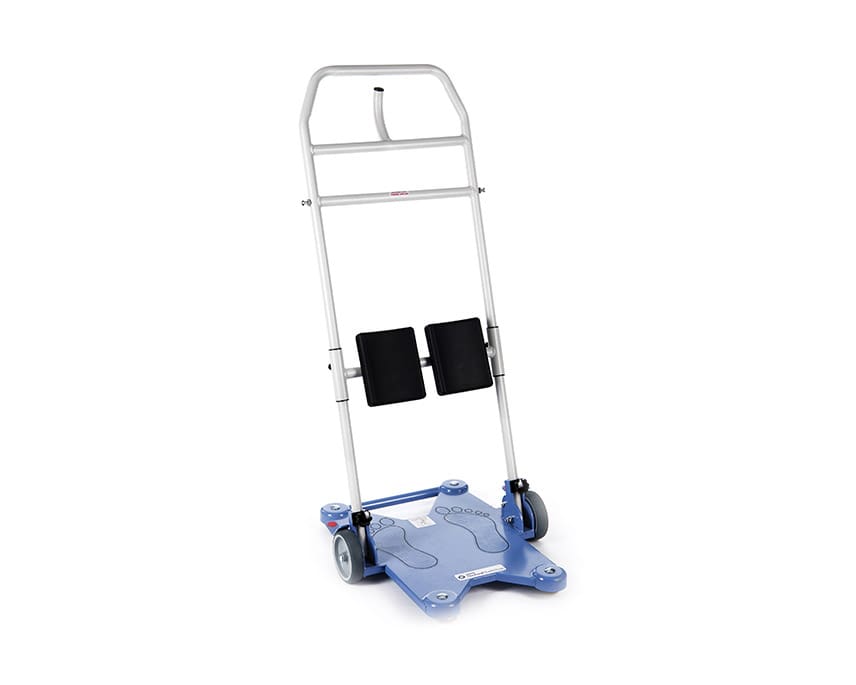

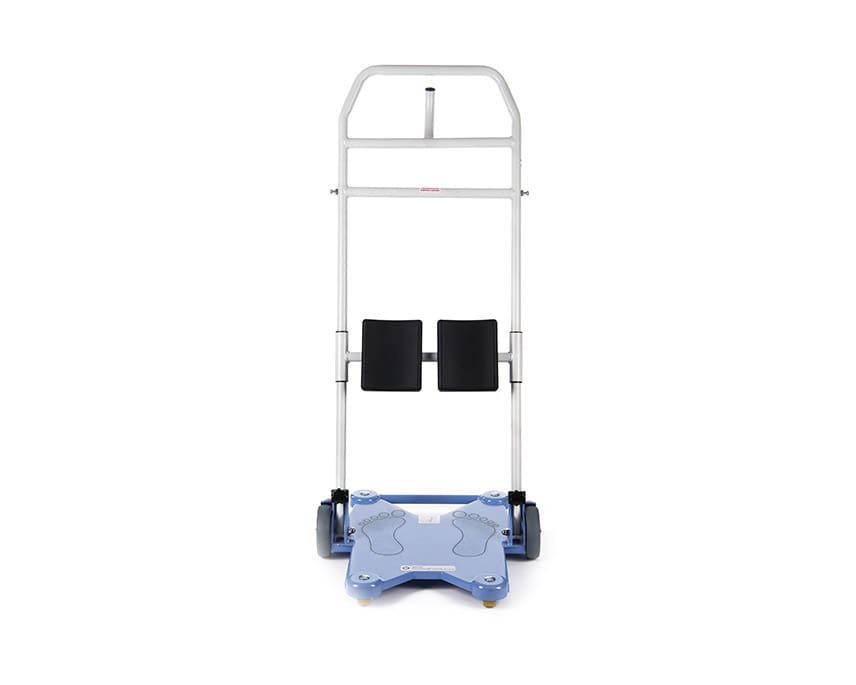

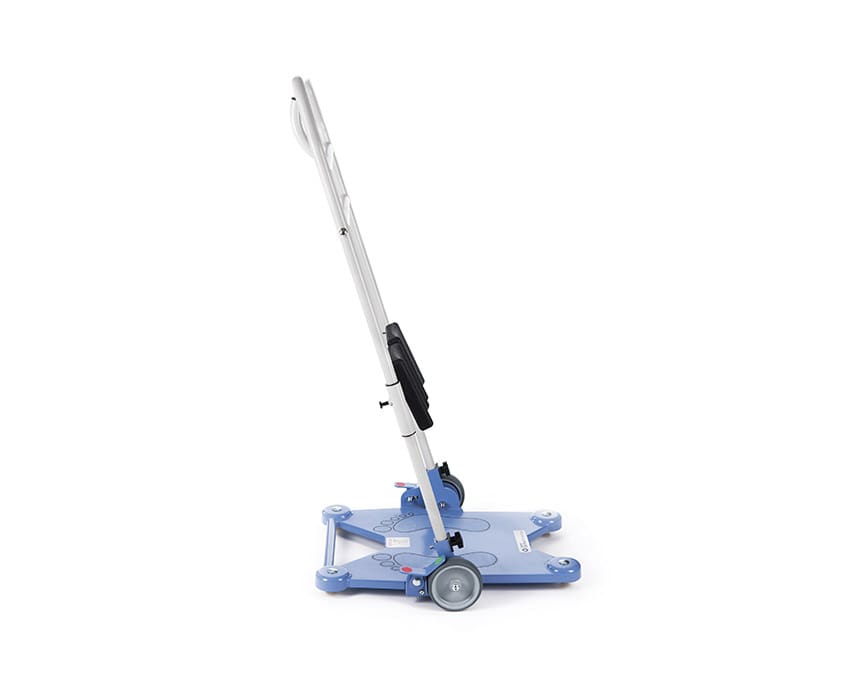

The Oxford Switch, part of the Professional Series, is a manual stand assist device, designed to help a person with reduced mobility, stand from a seated position and enable short distance transfers from one place to another. For added convenience, the Switch quickly and easily splits into two components for storage and onward transit. The Switch is simple and swiftly deployable thanks to its straightforward, non-powered design. It also benefits from simple servicing and maintenance needs when compared to a traditional electric stand aid.

As a rehabilitation aid, the Switch actively encourages the user to participate in the standing process, engaging core muscle groups and improving strength and function. In addition, the optional Patient Handling Belt provides additional standing support for the patient and offers grab handles and an adjustable looped strap that offer the carer a means of providing further assistance during standing.

Main Oxford Switch Stand Assist Features:

  • Safe working load 180kg / 28st / 397lbs
  • Versatile and easy to manoeuvre
  • Easy to transport and store

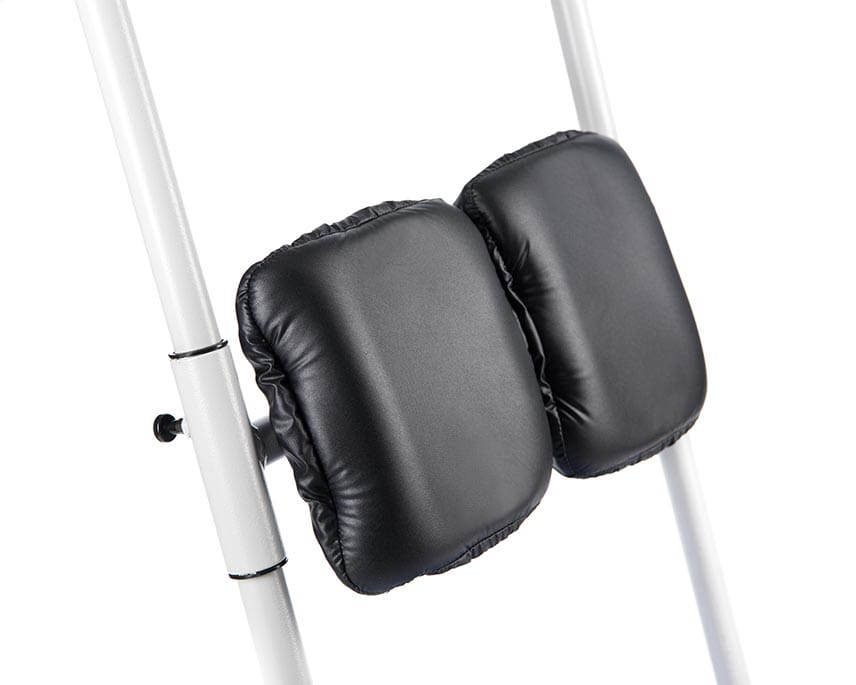

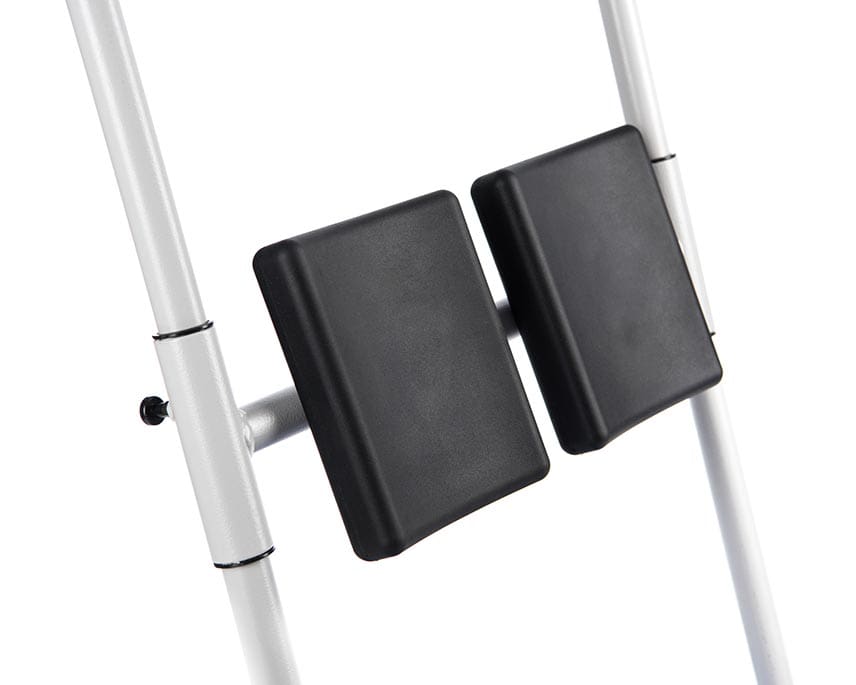

  • Adjustable knee pad and optional padded covers
  • Ergonomic design considerations
  • Simplistic on-going maintenance routines
  • Optional Patient Handling Belt for additional support
  • Downloads
  • Specifications
Switch Brochure View
Switch User Manual View
Switch Parts Manual View
Sling Guide View
Specification Imperial Metric
Safe Working Load 397 lbs 180 kg (28st)
Overall Height 46 inches 1170 mm
Overall Length 26.4 inches 670 mm
Overall Width 21.7 inches 550 mm
Knee Pad Height (Top of Pad) 13.6 - 20.3 inches 345 – 515 mm
Foot Plate Height 1.8 inches 45 mm
Ground Clearance 1 inches 25 mm
Turning Radius 29.9 inches 760 mm
Intended Operating Environment - +5°C to 40°C
Weight Imperial Metric
Frame 12.1 lbs 5.5 kg
Base 32.1 lbs 10.5 kg
Total 35.3 lbs 16 kg
